50 Ton Per Day Soya Pretreatment Line

Comments

The Soya Cleaning and Selection Pretreatment Line adopts advanced screening technology to efficiently remove impurities and substandard products from beans, ensuring the purity and quality of the final product. This production line not only enhances bean purity but also optimizes processing efficiency, providing high-quality and reliable soybean raw materials for subsequent soybean product processing.

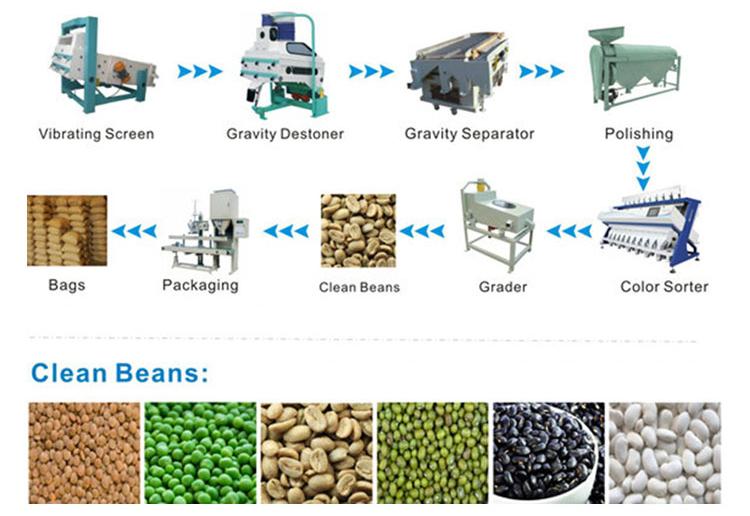

Soya Cleaning and Selection Pretreatment Line Workflow
The vibration screen first removes the small and big impurities in the soybean; then the gravity destoner removes stones of the same size and the mud; The magnetic separator removes metal impurities to prevent from damaging the next equipments; The conveying system delivers the materials to condition process to adjust their moisture and temperature; Then they are conveyed to grinder for twice grinding and winnowing; The flaker damages the cell of the soybean, beneficial for extraction of oil; then the materials go to extruder; the extruded germ is conveyed to dryer to be cooled; last they are conveyed to extraction workshop by scrapper.

Features
1. Equipped with a PLC automatic control system for centralized management of the entire production line.
2. Key components are high-quality Huayu Wantong equipment, ensuring stable operation.
3. Integrated dust removal system effectively collects and processes dust, maintaining a clean environment.
4. Flexible process design adapts to site conditions, with compact layout for easy maintenance and inspection.
5. The production line is widely suitable for processing various grains and beans, including soybeans, mung beans, adzuki beans, kidney beans, and coffee beans.

Requirements for Raw Soya
