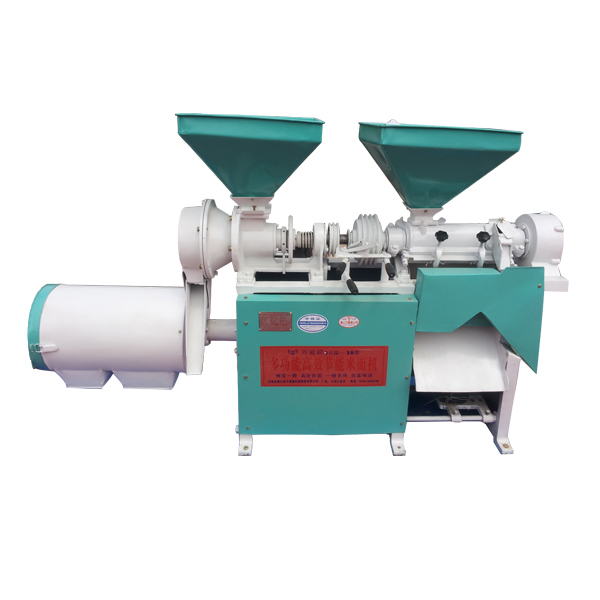

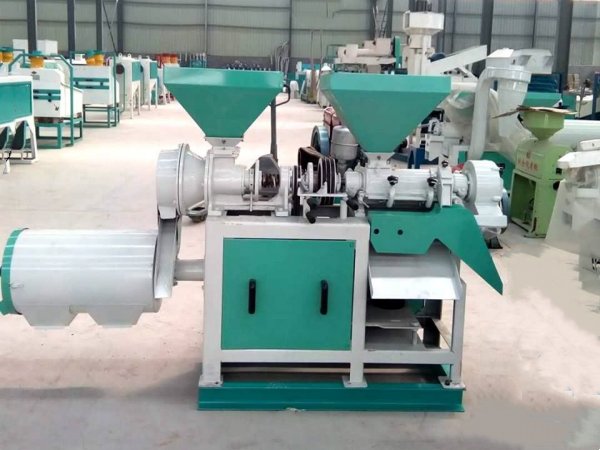

DNM-3B Maize Grits and Flour Milling Machine is mainly used for corn hulling, grits and flour milling process. The hulled materials are conveyed to grinding head, and then sifted by drum sieve to get required products. It is suitable for farms, market towns, grain offices, small and medium-sized grain processing enterprises and professional grain processing households.
Working Principle
The clean raw maize grain are fed into the feeding inlet and processed for peeling, degerming and removing black tiny particles of dust. Then, the corn kernels made by peeling machine are crushed to make grits with different size. The mixtures produced by crushing grits are classified and finally divided into three types, namely, medium grits, small grits and corn flour.
Performance Advantages
1. Multifunctional
DNM-3B corn peeling and grits milling machine is a small-scale combined equipment for corn processing that integrates corn peeling, grits, flour milling, finished product classification and wind selection.
2. Low power consumption
Low energy consumption, high efficiency and energy saving during operation; occupies a small area and saves production space.
3. High quality end products
End products are no black and dust dots, uniform particles, round and smooth appearance.
4. Humanize
In some areas with power shortage, diesel engine can also be configured as power transmission.
Finished Product

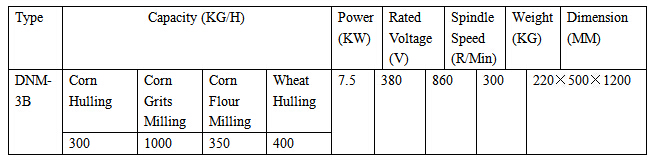

Technical Parameter
Type
Capacity(kg/h)
Power(kw)
Rated Voltage(v)
Weight(kg)
Dimension(mm)
DNM-3B
corn peeling
corn grits milling
corn flour milling
wheat peeling
7.5
380
300
2200×500×1200
300
300
300
400
