NF-280 Maize Dehusker for Sale

Corn peeling and polishing machine:
1.Used in corn peeling, wheat peeling, paddy peeling and sorghum peeling.
2.Suitable for small size of food processing factories in corn, wheat and sorghum peeling.



Working principle and features:
Win Tone NF-280 multifunctional corn peeling and polishing machine mainly has corn peeling, wheat peeling and rice peeling and polishing functions. The machine is internally installed 380V motor with 7.5W and can process 500kg of corn, wheat, sorghum and rice per hour.

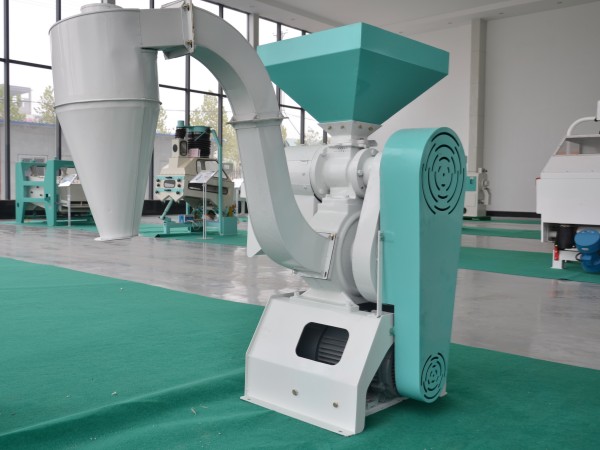

NF-280 corn peeling and polishing machine.jpg

corn peeling and polishing machine.jpg





Working principle: after cleaning up, the unprocessed corn enters into the peeling chamber of NF-280 corn peeling and polishing machine through feeding port. By control the feeding speed at the feeding port and the pressure of the pressure valve, we make the peeling chamber have some pressure. The machine squeezes, peels, degerminates, removes impurities and polishes the material between the rotary roller and the screen. And under the pneumatic effect, the corn kernels and the bran separate automatically and then we can get qualified corn kernels. The machine is internally installed efficient air suction chamber which can remove the skin and impurities from the peeling process.

Features of corn peeling and polishing machine:
1. Easy structure, good manufacturability in processing and installation, small volume and convenient operation. The whole machine only occupies an area of less than one square meter and we only need to install pitch screw for fixing.
2. Wheat, sorghum and paddy peeling and polishing function.
3. Internally installed efficient winnowing and dust removing blower.
4. High output and good effect.
The discharging port of the peeling chamber can accurately control corn or wheat staying time in the peeling chamber by pressure valve and ensure the effective friction with alloy roller so as to realize better peeling effect.



corn end products.jpg



Technical parameter:

Model

Yield

Power

Rated voltage

Spindle speedr/Min

Weight

Outline dimension



KG/H

KW

V

KG

MM



NF-280

Corn peeling

500-600

7.5

380

1000-1200

180

1000x400x1200







Our Factory

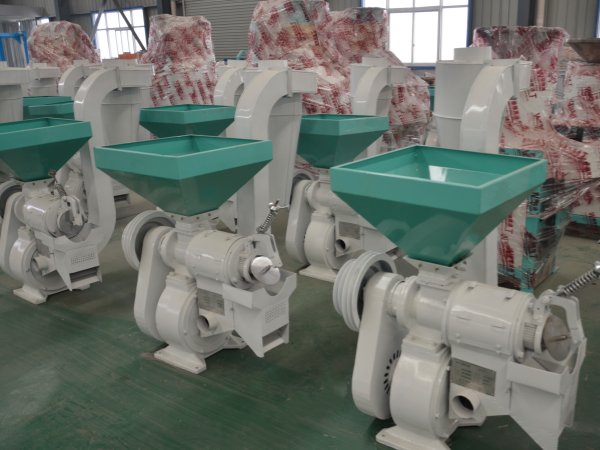

Workshop
